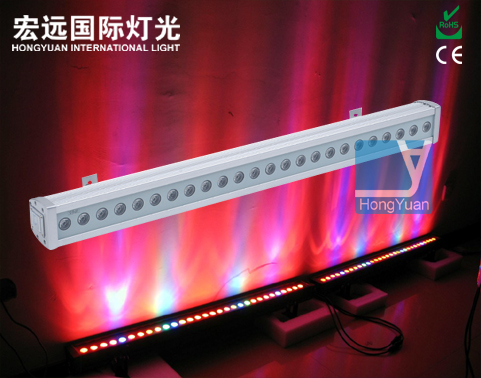

24 Wall Washer
DETAIL INFO
Technical Parameters
LED color, quantity: 1W / 3W LED 24 PCS
Beam divergence angle: 15 ° / 45 °
Light irradiation distance: 20M / 10M
Lifespan: 50,000 hours
Data communication formats: standard DMX512 protocol
DMX channels: 6 channels
Rated operating voltage: 100V ~ 256V AC/12V/24V DC
LED current: 350Ma ± 5%
Power consumption: 75W
Protection: IP54
Ambient temperature: -18 ℃ ~ 40 ° ℃ (0 ℉ ~ +104 ℉)
Working temperature: 5 ℃ ~ 30 ° ℃ (41 ℉ ~ +86 ℉)
Rotation angle: 175 °
Dimensions: L1200 X W76 X H100 mm
Shell material: Aluminum
Surface treatment: sandblasting
Weight: 4kg ± 5%
