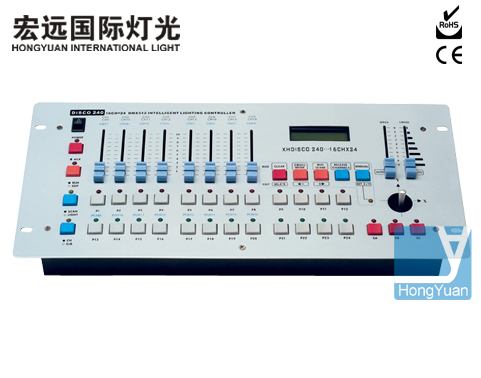

DMX 240 control table

1) 240 DMX channels (12 * 20)

2) there are 30 BANKS

3) there are eight programmable SCENES, there are eight adjustable potentiometer to adjust the output size, the built-in MIC head, provide sound trigger

4) in the automatic trigger state, through the TAP the SYNC button thickness SPEED potentiometer automatic trigger time is determined.

5) have a MIDI interface, can use MIDI signal control at any time.

6) 8 * 2 LCD display, can be arbitrarily set the channel position, suspend the program runs, A, B page stack operation,

Any channel micro step adjustment, BLACKOUT function can be used manually or MIDI as a remote control

7) the CHASES programming, six runs the CHASES stacks up

8) output delay function, with the FADE TIME potentiometer to adjust delay TIME.

9) size: 58 * 20 * 13 cm

10) net weight: 3.5 kg
