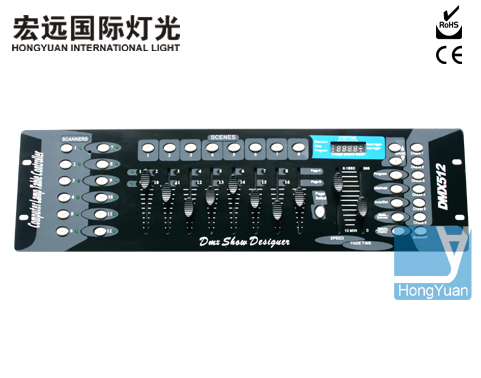

DMX 192 control table

The total number of channels: 240 road

A controlled amount of quantity: 12 units

Control computer for the channel number: 16 channel

Step steps program biggest (scenario) : 40

Step procedure steps (scenarios) : 480

Scene pause time: 0.1 25.5 seconds/step

Scene transition speed: 0.1 to 25.5 seconds

Dimmer channel: 24 channels

LED display: LCD display, 16 x 2 characters

XLR DMX512 output interface: 3 core needle seat and seat

Memory capacity: 128 k large capacity memory card

Input voltage: AC100-240, 50 to 60 hz

Size: 483 * 178 * 80 mm

Weight: 3.25 KG
