Technical parameters

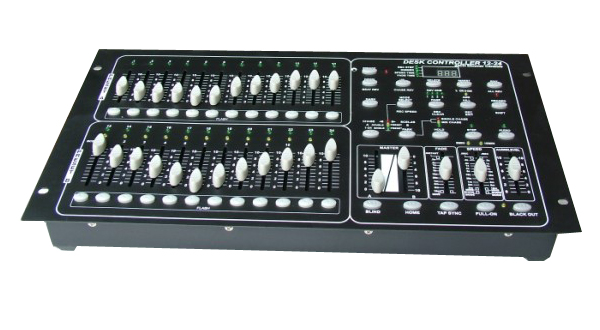

This machine is controlled by CPU DMX controller, there are 24 channels, each channel can be dimmer.

48 self-programming, each program can walk 99 steps. Can automatically run the program, also can through the built-in mic or external acoustic sound signals.

Can adjust the speed of light and dream time.

All of the stored data and lamp is program is protected by a built-in battery.

With digital use DMX512 control separate address to connect the lights. The default address is the number 1-24.

There are three digital display shows the operation steps:

There are 3 pin card nong plug standard DMX512 control signal output:

Have a MIDI input and output, string receive, signal through five needle DIN plug connection.

Built-in microphones, line input music signal:

Setting machine dedicated interface

With DC interface with DC power supply (input AC120 20 v ~ 230 v output DC12 ~ 500 ~ 700 ma)

Volume (300 * 152 * 152 mm) carton size (cm) : 60.5 * 40 * 40, 2 PCS/pack

Weight: 2.1 KGS gross weight: 14 KGS
